China Gold Supplier Design Rotating Touch Science Rotavape

FOB Reference Price:Get Latest Price
US $4,000-6,000 / Sets | 1 Set/Sets Touch Science Rotavape (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Distillation, Distillation, Chemical industry
Power Source:
Electric
Process:
Vacuum Distillation
Place of Origin:
China (Mainland)
Brand Name:
Touch Science
Model Number:
R-1020
Voltage:
220V/50HZ or 110V/60Hz
Power(W):
250W
Dimension(L*W*H):
1250x600x2100mm
Weight:
140kg
Certification:
CE ISO
Warranty:
One Year
After-sales Service Provided:
No overseas service provided
Product name:
China Gold Supplier Rotary Evaporator
Receiving Flask:
10L
Evaporating Flask:
20L
Vacuum degree:
0.098Mpa
Rotating Speed:
20~130rpm
Lifing Height:
0~190mm
Display:
Digtal Display
Temp Control Range:
RT-399℃
Ambient Temperature:
5~35℃
Supply Ability
Supply Ability:
300 Set/Sets per Month Touch Science Rotavape
Packaging & Delivery
Packaging Details
Standard expert wooden case or as your requirement.
Port
Zhengzhou, Beijing, Shanghai
Lead Time :
3~5 working days after payment receipt
Product Description
Introduction:

Rotary evaporator is better to use when when you want to get rid from the solvent. let’s say you have a solution of some chemical in some solvent. if you want to obtain a oil or crystal form of the chemical, you may put solution to rotary evaporator and evaporate the solvent.

R-series rotary evaporator mainly used in lab test, middle test, and production of biological, pharmaceutical, chemical, food industries etc.it upgrade to have large capacity and caliber rotary evaporating flask, make solution diffuse and evaporate efficiently under the condition of constant rotating and heating in the water bath.it can match with vacuum pump, chiller etc to constitute system equipment.

Features of R Series Rotary Evaporator:
1. Teflon(PTFE) and fluorous rubber double rotating seal, keep high vacuum degree.
2. Effcient flask and vapour tube ejection system
3. Easy to install and disasembled, easy to operate and maintain
4. Digital temperature and rotation speed displays allow to reproduce evaporation conditions very accurately
5. Each unit is also provided with an easy to use vacuum release and a continuous feed system
6. Beauty integrate in appearance, clear number of vacuum meter.

Parameters

Parameters of R Series Rotary Evaporator:

Model
R 1005
R 1010
R 1020
R 1050
Evaporating Flask
5L
10L
20L
50L
Collecting Flask
3L
5L
10L
20L
Motor Power
250W
Rotating Speed
20~140rpm
20~130rpm
20~110rpm
Power Supply
Single-phase 220V/50HZ
Three-phase 220V/380V/50HZ
Bath Power
2KW
4.5KW
6KW
8KW
Bath Size
Φ300×170
Φ350×220
Φ450×260
Φ550×320
Ethanol Evaporate Rate
>=4L/Hour
>=6.5L/Hour
>=11L/Hour
>=19L/Hour
Lifing Height
0~150mm
0~160mm
0~190mm
0~180mm
Condenser
Vertical Double Coil
Main+Vice Condenser Three Reflux
Dimensions
765×400×1070
920×550×1700
1250×600×2100
1320×770×2340
Vacuum Degree
399.9pa
Temperature Control
Intelligent Digital/RT-399℃
Temperature Control
5~35℃
Lifting Mode
Electric

Applications:

1)Flavor extraction/food industry

2)Solvent removal/separation and recycling

3)Chemical/educational/fuel/environmental

4)Sample concentration

5)HPLC and natural product sample prep

6)Drying down powders (using test tube adapter)

7)Trapping hazardous waste liquid

Related Products

R 1020 Model

RE-2002 Model

RE-501 Model

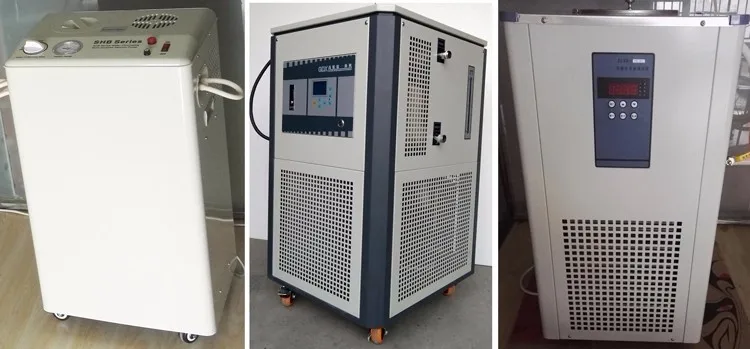

Support Products

A rotovap usually works with a chiller and a vacuum pump.

The vacuum pump bulid a vacuum condition inside the rotovap and make the evaporation easily.

The chiller bring the cold liquid to the coils in the condenser. The vapor will be converted into liquid when it meet the cold coils.

Packing & Delivery

Packing:
-Lab industrial vacuum rotovap/rotary evaporator glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packed in wooden cases.
-Both neutral and customized packaging can be available.


Shipping:
-Usually we ship the goods by one of three methods as below. You can choose the most appropriate one according to your timeline and budget. Shipping by your own shipping agent is acceptable.

Shipping Method
Note
By Express
Door to door, very convenient, don't need to do customs clearance or pick-up
By air to the airport
Airport to airport, you need to do customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you.
By air and dispatch
Airport to door. You need to cooperate with our shipping broker to do customs clearance and don't need to pick up at the airport.
Our Company

 Henan Touch Science Instruments Co.Ltd

Founded and based in Henan, China, Touch Science is is a professional manufacturer and exporter that is concerned with the design, development and production of lab equipments, in the areas of heat treatment and material processing for universities, research facilities and labs. We have more than 15 years of manufacturing experience with lab industrial vacuum rotovap/rotary evaporator, glass reactors, drying ovens, chillers, water ring vacuum pumps, and other lab instruments. We have gained a global sales network reaching USA, Canada, Europe, Chile, Japan, India, etc.

We attach importance to every customer and every order. 100% customer satisfaction is always our first priority. We provide quantity discounts and will reply to your requests within the same business day. Our goal is to build up business partnerships with friends around the world.


Contact Us

Contact person: Tina
Email: tina(@)touch-science.com
Tel/What'sapp: +86 13393723769
Instagram: ts.tina.sun
Phone: 86-371-86051511


Henan Touch Science Instruments Co., Ltd
Add: Room 1005, #127 Zhengbian Road, Jinshui, Zhengzhou, Henan, China
