Touch Science Lab Apparatus S-50L 50 L Cylindrical Glass Jacketed Laboratory Reactors Lab Chemical Stirring Reactor

FOB Reference Price:Get Latest Price
US $3,000-4,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
S-50L S 50L S50L
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Automatic Grade:
Automatic
Type:
Reaction Kettle, 304 all stainless steel frame
Place of Origin:
Henan, China (Mainland)
Brand Name:
Touchscience
Voltage:
220V/50HZ or 110V/60HZ
Power(W):
120W
Dimension(L*W*H):
760*560*2450MM
Weight:
92KG
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Online support
Application:
Chemical Industry
Heating Method:
Electric
Interlayer Capacity:
12L
Capacity:
20L
Stirring Speed:
0~600 rpm(max. 1300)
Stirring Shaft Diamete:
12MM
Vacuum Degree:
-0.098mpa
Seal Method:
PTFE,Fluoro Rubber Sealing
Product Name:
Electrical Lab Apparatus 50 L Jacketed Chemical Stirred Glass Reactor
Supply Ability
Supply Ability:
200 Set/Sets per Month Glass Jacketed Lab Chemical Stirring Reactors
Packaging & Delivery
Packaging Details
Lab Apparatus S-50L 50 L Cylindrical Glass Jacketed Laboratory Reactors Lab Chemical Stirring Reactor
1530*710*1010mm 1 Set/Woodencase
HS Code: 84198990.90
Port
Zhengzhou, Beijing, Shanghai

Touch Science Lab Apparatus S-50L 50 L Cylindrical Glass Jacketed Laboratory Reactors Lab Chemical Stirring Reactor

Introduction:

    Glass jacketed lab chemical stirring reactors is designed double-level glass. The reaction material is put into the inner, which can be stirred. different heating or cooling liquids, such as water or oil, can be injected in the interlayer of glass reactor for providing a constant temperature for reactions. Under the constant temperature and ordinary pressure, as well as negative pressure. widely used in chemical reaction, combination, separation and concentration, also back-flow, distillation. etc

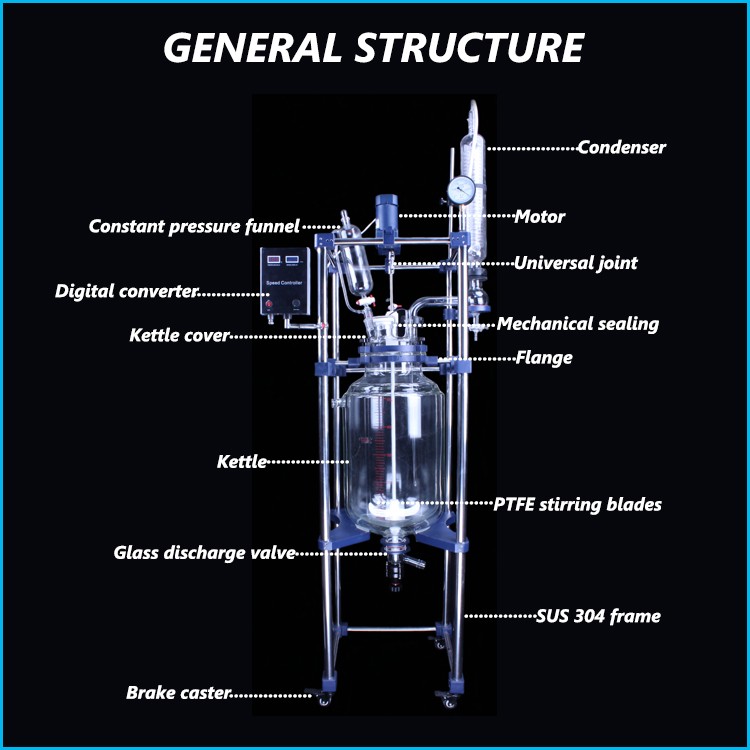

Detail Images of Glass Jacketed Lab Chemical Stirring Reactors:

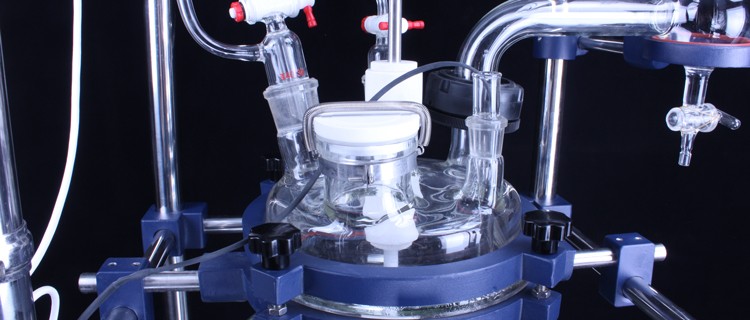

The key part:

1.The separable tank body and cover, easy to feed and clean.

2.All the connection ports in this part. we have excellent processing to keep vacuum condition.

3.6 ports. could connect thermometer, stirrer, distillation unit, reflux unit, funnel etc. multiple function as you wish.(the parts is customized)

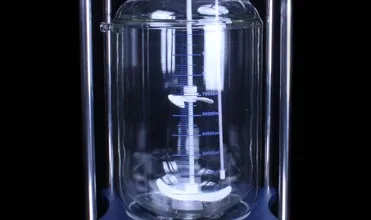

The Tank Body

1.The transparent glass can be helpful to monitor the inner reaction.

2.The interlayer can inject hot/cold liquid to heatwinterize the inner layer. and can be completely removed after reaction

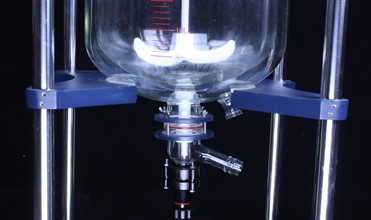

3.Glass(PTFE)discharge valve, non-dead angle mixing, fast emptying, no residue.

4.Universal wheels without shaking when mixing and can be moved overall.stainless steel structure is robust and beautiful.

5.Rugged steel-reinforced PTFE stirrer with anchor agitator which is suitable for a wide range of material viscosity.

The Overhead Stirrer

1.Universal joint reduces vibration of condenser and make glassware joint safe and flexible.

2.Mechanical sealing, keeps high vacuum degree when operating.

3.Constant pressure funnel, liquid could charge continuously under vacuum.

4.Explosion proof is optional.

Contact to Tell Me your Requirements

Parameters of Glass Jacketed Lab Chemical Stirring Reactors:

ModelS-1LS-2LS-3LS-5LS-10LS-20LS-30LS-50LS-100LS-200L
Power Supply220V/50HZ       110V/60HZ
Stirring Power(W)4090120180750
Stirring Shaft Dia(mm)81215
Stirring Speed(rpm)0~600 (max. 1300)
Vacuum degree(Mpa)-0.098
Capacity(L)123510203050100200
NoteFloor type304 all stainless steel frame



Features of Glass Jacketed Lab Chemical Stirring Reactors:

1.High borosilicate glass has good physical and chemical properties

2.The instrument is a fully closed system. Various liquid gas can be poured into it by minus pressure.

3.Special long life stirring sealing cap, the vacuum degree may come up to -0.098mpa

4.Only the GG17 Glass and PTFE can touch the material there exists no pollution with it.

5.Digital display of constant mixing speed, frequency conversion, work steadily

6.Frequency control speed gear motor, smooth running,high torque, automatic booster, no spark, noise free, long life.

Support Equipment



      Vacuum Pump                       Heating Circulation Bath                Recyclable Chiller

Related Product Link



      Vacuum Rotary Evaporator           Single Layer Glass Reactor         Vacuum Drying Oven

Packaging & Shipping



 Packing:

-Glass jacketed lab chemical stirring reactors glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packed in wooden cases.
-Both neutral and customized packaging can be available.

Shipping:

-Usually we ship the goods by one of three methods as below. You can choose the most appropriate one according to your timeline and budget. Shipping by your own shipping agent is acceptable.

Shipping methodNote
By ExpressDoor to door, very convenient, don't need to do customs clearance or pick-up
By air to the airportAirport to airport, you need to do customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you.
By air and dispatchAirport to door. You need to cooperate with our shipping broker to do customs clearance and don't need to pick up at the airport.

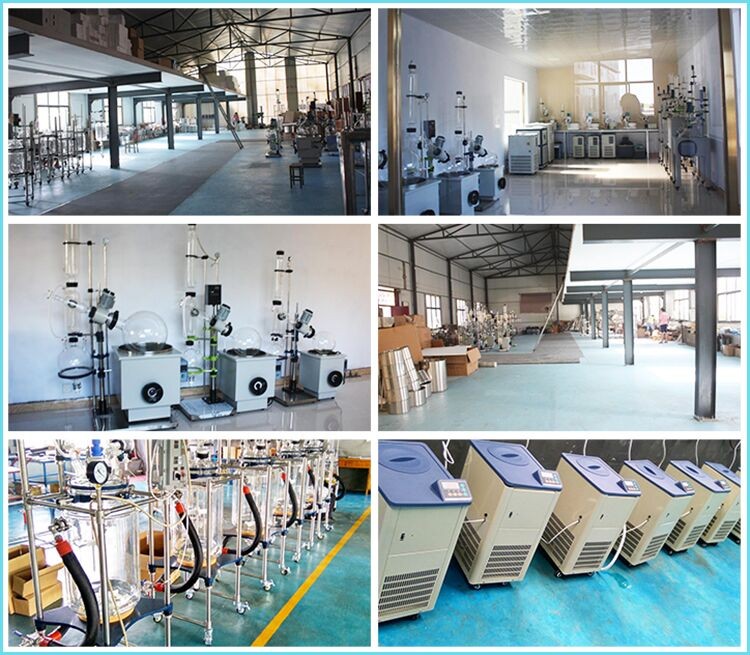

Company Information
