High Quality Full Digital Display 2L Magnetic Stirring Heating Mantle

FOB Reference Price:Get Latest Price
US $300-500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Classification:
Laboratory Heating Equipments
Brand Name:
Touch Science
Model Number:
ZNCL-2000
Place of Origin:
Henan, China (Mainland)
Name:
High Quality Full Digital Display 2L Magnetic Stirring Heating Mantle
Usage:
Heating Treatment
Application:
Short path distillation
Voltage:
220V or110V
Max temperature:
RT-350℃
Working temperature:
0~35℃
Operation:
Easy
Warranty:
1 Year
Temperature control:
PID Automatic Control
Shipping time:
5~7 days
Packaging & Delivery
Packaging Details
Carton or wooden case
Port
Zhengzhou
Lead Time :
5-7days after your payment receipt
Product Description

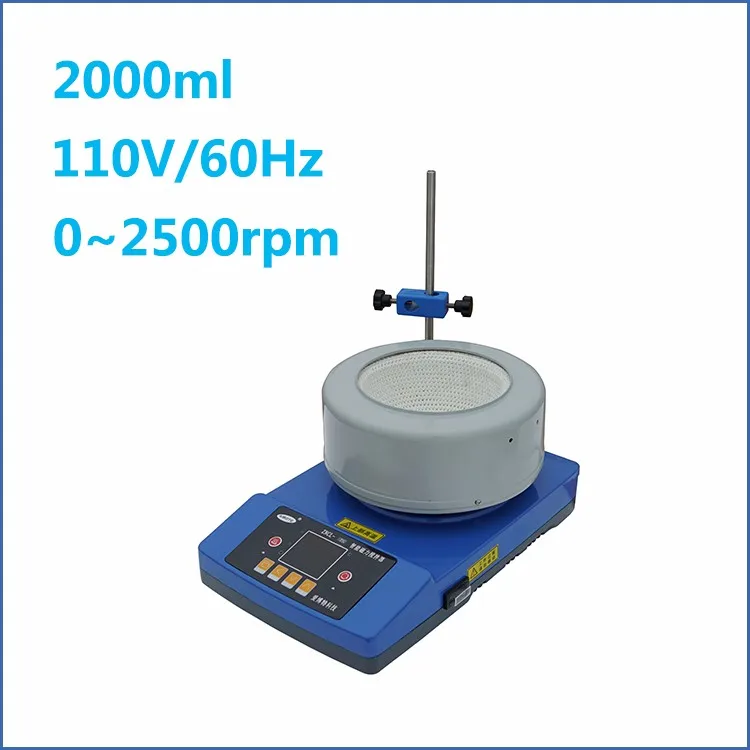

Full Digital Display 2L Magnetic Stirring Heating Mantle

Touch Science 2L plug and play magnetic stirring and heating mantle. Comes standard with digital display for accurate control, and large display numbers for easy temperature and rotation speed readings. Two sets of thermocouples allows you to detect heater or material temperatures. Heating jacket is treated before shipment, to prevent release of smoke and odor caused by heat into your working environment.

Parameters
Model
ZNCL-500
ZNCL-1000
ZNCL-2000
ZNCL-3000
ZNCL-5000
Capacity
500ml
1000ml
2000ml
3000ml
5000ml
Power supply
220V/50Hz or as your requirement
Motor
40W DC14V
Stirring speed
0~2500rpm, stepless speed control
Heating power
220W
530W
650W
730W
1100W
Temperature range
RT~350℃
Accuracy
±1℃ self-adjusting function
Display
Full digital
Water boiling time
7~12min
10~15min
Furnace wire
Cr20Ni80
Insulating layer
Non-alkali glass fiber, can heat resistance of 450 ℃
Thermal insulation layer
Aluminum silicate cotton
Inner diameter
115mm
145mm
180mm
212mm
253mm
Inner depth
70mm
85mm
105mm
125mm
145mm
Dimessions(mm)
370*235*200
420*285*250
480*330*260

Features

1. Use heating mantle for heating, provide large heating area, uniform heating, fast heating, temperature can reach up to 350℃
2. Can be used for 50-10000ml standard or non-standard reaction flasks for heating and stirring.
3. Imported PAPST series brushless DC motor with stable performance, low noise, long life, no spark.
4. The shell is made of PBT material, have the advantages of flame retardant, withstand high temperature, corrosion and good insulation.
5. 30 ° bevel control panel for sitting and standing position perspective.
6. LCD display of rotating speed and temperature.

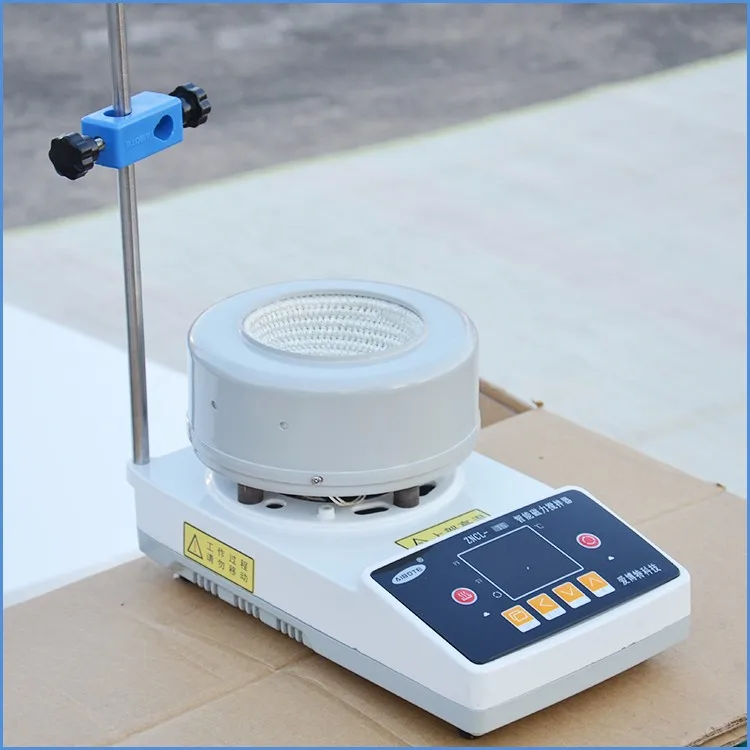

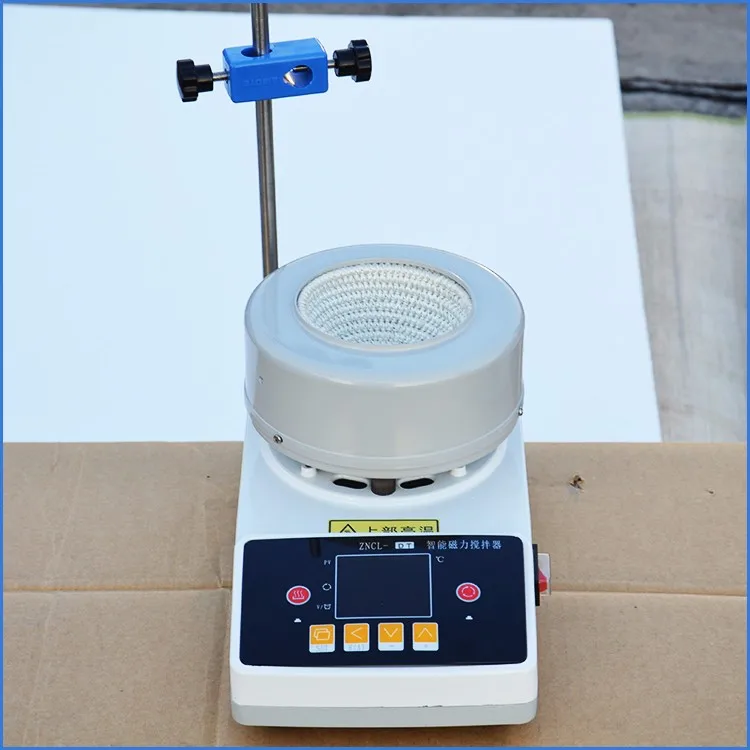

Detailed Images
Packing & Delivery

Packing

-The Full Digital Display 2L Magnetic Stirring Heating Mantle will be wrapped with foam, then put into the carton; the mainbody portion will be packed in wooden cases.
