Quick Details

  • Condition: New
  • Application: Distillation
  • Power Source: Electric
  • Process: Vacuum Distillation
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Touch Science
  • Model Number: RE-2000E
  • Voltage: 220V/50HZ or 110V/60HZ
  • Power(W): 40W
  • Dimension(L*W*H): 615*615*470mm
  • Weight: 23kg
  • Certification: CE ISO
  • Warranty: One Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Application Industries: Chemical Industry
  • Receiving Flask: 1L
  • Evaporating Flask: 2L
  • Sealing: PTFE
  • Lifting: Automatic
  • Rotating Speed: 0-120rpm
  • Max Vacuum Degree: -0.098Mpa
  • Condenser: Vertical Condenser
  • Glass Material: High Borosilicate GG-17
  • Product Name: Rotovape CO2 Extraction Machine Vacuum Rotary Evaporator

Packaging & Delivery

Packaging Details Standard export wooden packing.
Delivery Time Within 3~5 working days after your payment.
Product Description

Rotovape CO2 Extraction Machine Vacuum Rotary Evaporator

Introduction:

Vacuum rotary evaporator is heated by water bath(oil bath) to form thin film under the negative pressure condition, evaporate, then condense and recycle the solvent simultaneously. The apparatus are particularly suitable for the heat-sensitivity material’s condensation, crystallization, separation, recovery and so on. It is an important instrument for scientifical research, pilot and production in biological pharmacy, chemical engineering and food industries etc.

Features of Vacuum Rotary Evaporator:

1. AC motor, stepless speed regulation, no brushes, no sparks, long life;

2. Automatic lifting, easy and quick operation;

3. High borosilicate glass, good physical and chemical properties;

4. Stepless speed control and LCD speed display;

5. PTFE sealing parts, tight sealing, high vacuum degree, high evaporation rate and recovery rate;

6. Teflon heating bath, even temperature, fully enclosed design.

Parameters of Vacuum Rotary Evaporator:

Model
RE-2000A
RE-2000B
RE-2000E
Evaporating Flask(L)
1/24#(0.25~2L)
Receiving Flask(L)
1
Rotating Motor(W)
40
Rotating Speed(R/MIN)
0~180
Speed Display
None
Digital
LCD
Water(Oil) Bath Power(W)
1500
Temperature Control Range(℃)
0~400
Temperature Fluctuation(℃)
±1
Evaporation Rate(H2O)
≥1L/h
Max Vacuum Degree(Mpa)
-0.098
Water Bath Size(mm)
 Φ240*140
Condenser(mm)
85*430
Lifting Mode
Electric
Lifing Height(mm)
0~120
Voltage
220V/50Hz or 110V/60Hz
Detailed Images

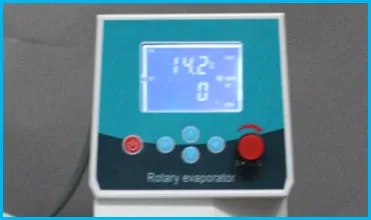

               Control Panel



               Stepless speed control

               LCD display

               Easy operation

               Precise temperature control

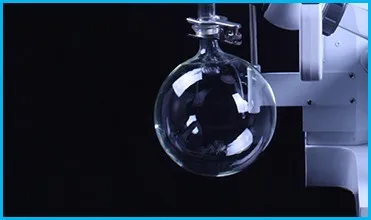

                            Glass Parts



                            Material: High borosilicate glass

                            Temp. range: -100℃~400℃


                            --High temperature resistance

                            --Corrosion resistance

                            --High strength and hardness

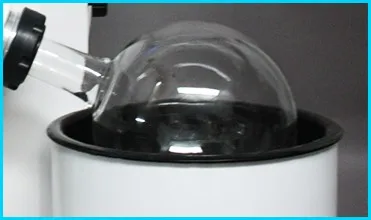

               Heating Bath



               Material: aluminium alloy and teflon
               Size: Φ280*170mm
               Capacity: 10L
               --Fully enclosed heating
               --Constant temperature
               --Efficient and durable

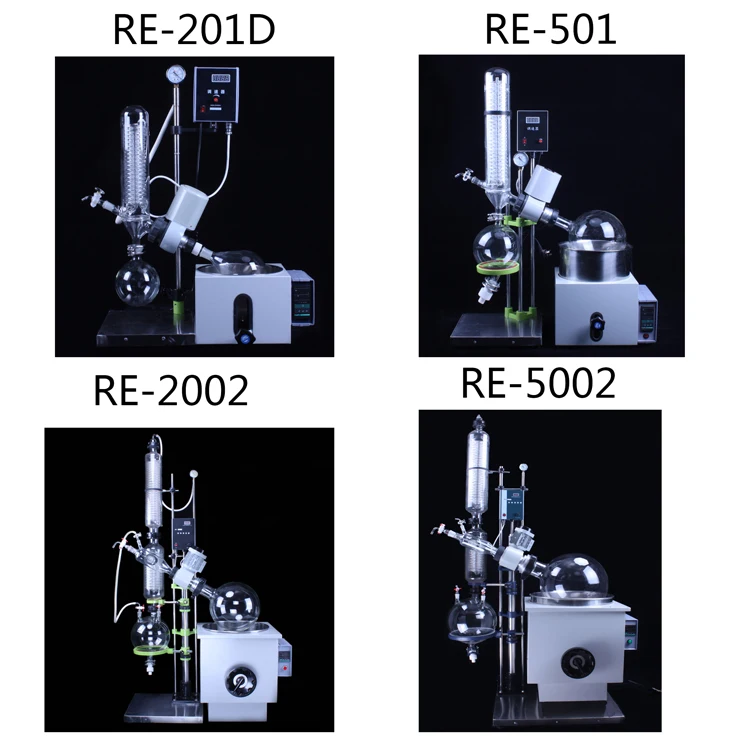

Other Models
Packing & Delivery

Packing:

-Vacuum rotary evaporator glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packed in wooden cases.
-Both neutral and customized packaging can be available.

Shipping:

Usually we ship the goods by one of three methods as below. You can choose the most appropriate one according to your timeline and budget. Shipping by your own shipping agent is acceptable.

Shipping method
Note
By express
Door to door, very convenient, don't need to do customs clearance or pick-up.
By air to the airport
Airport to airport, you need to do customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you.
By air and dispatch
Airport to door. You need to cooperate with our shipping broker to do customs clearance and don't need to pick up at the airport.
