Quick Details

  • Condition: New
  • Type: Drying Oven
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Touch Science
  • Model Number: DZF-6210
  • Voltage: 220V
  • Power(W): 2400W
  • Dimension(L*W*H): 730*730*1800mm
  • Weight: 251kg
  • Certification: CE ISO
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Application: Chemical
  • Shelves (Pcs): 3
  • Power supply: 220V/50HZ
  • Chamber capacity: 215L
  • Vacuum degree: 0.098Mpa
  • Temp. Range: RT+10~200°C
  • Shell material: Spray-paint Anti-corrosion
  • Inner material: 304 Stainless Steel
  • Raw material: Cold-rolled sheet

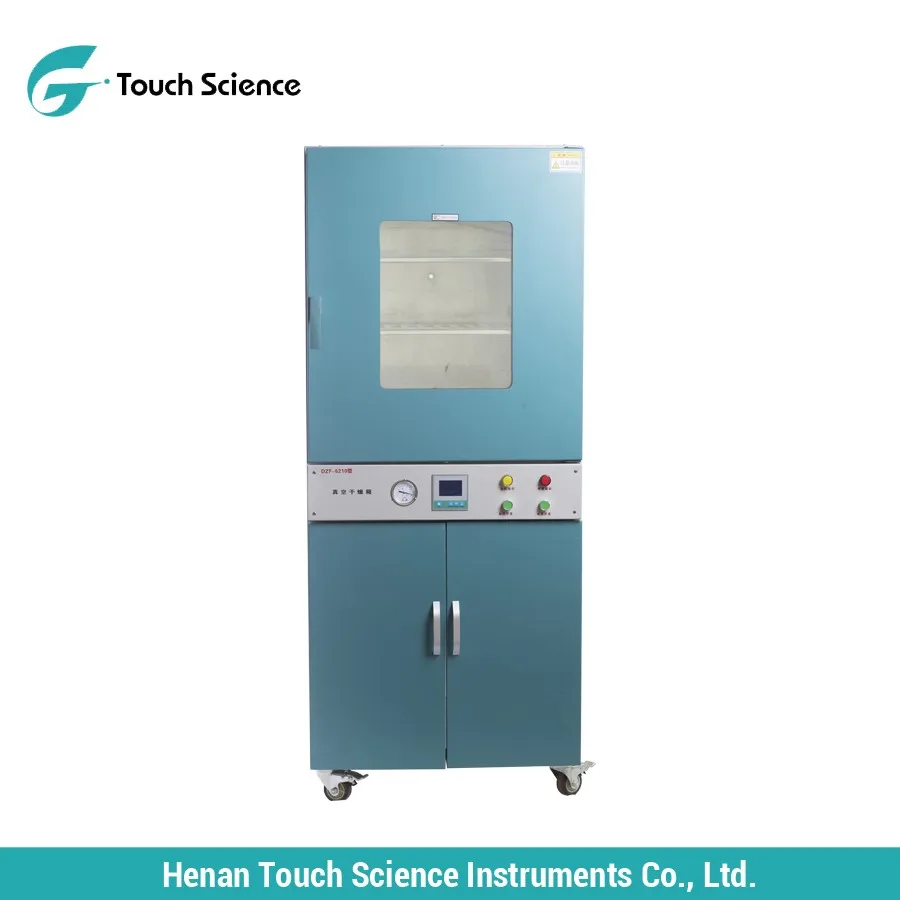

  • Name: Vertical Type Large Vacuum Drying Oven

Packaging & Delivery

Packaging Details Standard export wooden case or as your required.
Delivery Time 3-5 working days after payment receipt
Product Description

Function:

Vertical Type Large Vacuum Drying Oven applies in drying, sterilizing and heat treatment of articles under the relatively vacuum condition in laboratories of industrial mining enterprise, colleges and universities, scientific research institute and medicine and health units etc.

Features:

1. The vacuum tube around makes room temperature more uniform, avoiding organic connecting with fires burring.
2. Set temp and control are all intelligent digital display, high accuracy.
3.6020、6050 both adopt jacketed vacuum glass door .On one hand, it keeps the temp in room; On the other hand you can see the dried instruments clearly.
4. The door that can be adjusted is overall the silicone rubber molding circle, can insure the vacuum degree.

Model
DZF-6010
DZF-6020
DZF-6050
DZF-6090
DZF-6210
DZF-6500
Power Supply
220V/50HZ
Shell Material
Spray-paint Anti-corrosion
Liner Material
304 Stainless Steel
Temp. Range
RT+10~200°C
Max. Vacuum Degree
0.098 Mpa
Temp. Stability
±1.0°C
Temp. Analysis
0.1°C
Working Temp.
+5~40°C
Input Power (W)
400
800
1400
2000
2400
2800
Chamber Capacity (L)
8
25
55
90
215
215
Shelves (Pcs)
1
2
3
4
Time Range
1~9999 min
Optional Configuration
Explosion-proof

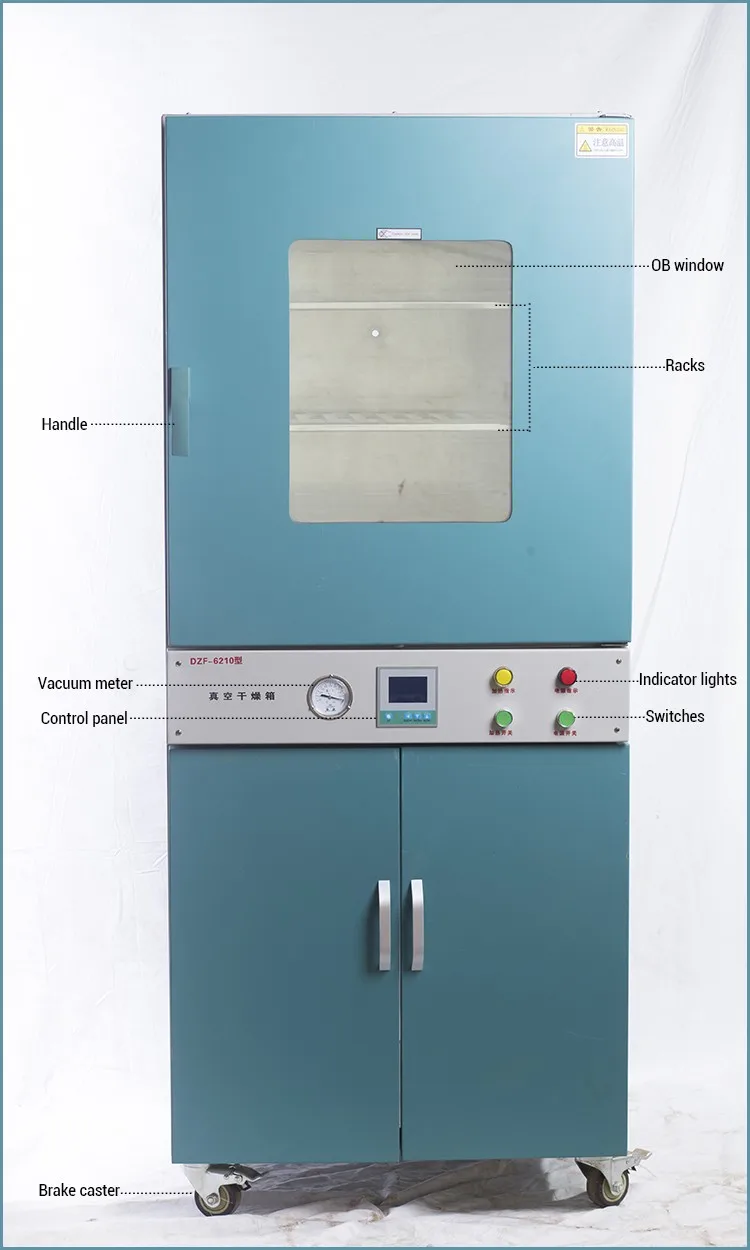

Detailed Images

Control panel

LCD display
Precise temperature control
Easy operation and observation

Stainless steel rack

304 stainless steel material
Anti-corrosion and heat resistance
Eeasy move and clean

Vacuum meter

Stable, Sensitive, Precise
Anti-magnetic, Anti-corrosion
Tight sealing and structure

Packing & Delivery
Our Service

1. Pre-service
--24 Hours online service for your consult.
--Help to choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer.
--Provide discount for many sets order.
--Do customer's request.
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--OEM avaliable.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts.
--Remote control technical consult.

Our Company

Henan Touch Science Instruments Co., Ltd.

Founded and based in Henan, China, Touch Science is is a professional manufacturer and exporter that is concerned with the design, development and production of lab equipments, in the areas of heat treatment and material processing for universities, research facilities and labs. We have more then 15 years of manufacturing experience with induction rotary evaporators, glass reactors, 1.9 cu ft Vacuum Oven, chillers, water ring vacuum pumps, and other lab instruments. We have gained a global sales network reaching USA, Canada, Europ, Chile, Japen, India, etc.

We attach importance to every customer and every order. 100% customer satisfaction is always our first priority. We provide quantity discounts and will reply to your requests within the same business day. Our goal is to build up business partnerships with friends around the world.
