Quick Details

  • Condition: New
  • Type: Vacuum Drying Equipment
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Touch Science
  • Model Number: DZF-6090
  • Voltage: 220V
  • Power(W): 2KW
  • Dimension(L*W*H): 770*620*710mm
  • Weight: 95kg
  • Certification: CE ISO
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Application: Chemical Industry
  • Interior Material: 304 Stainless Steel
  • Capacity: 90L
  • Shelves: 2
  • Max Vacuum degree: 0.098Mpa
  • Temp Range: RT+10~200°C
  • Temp. Stability: ±1.0°C
  • Working Temp.: +5~40°C
  • Heating source: Electricity
  • Name: Resin Vacuum Dryer Laboratory Drying Oven

Packaging & Delivery

Packaging Details Standard export wooden case or as your required.
Delivery Time 3-5 working days after payment receipt
Product Description

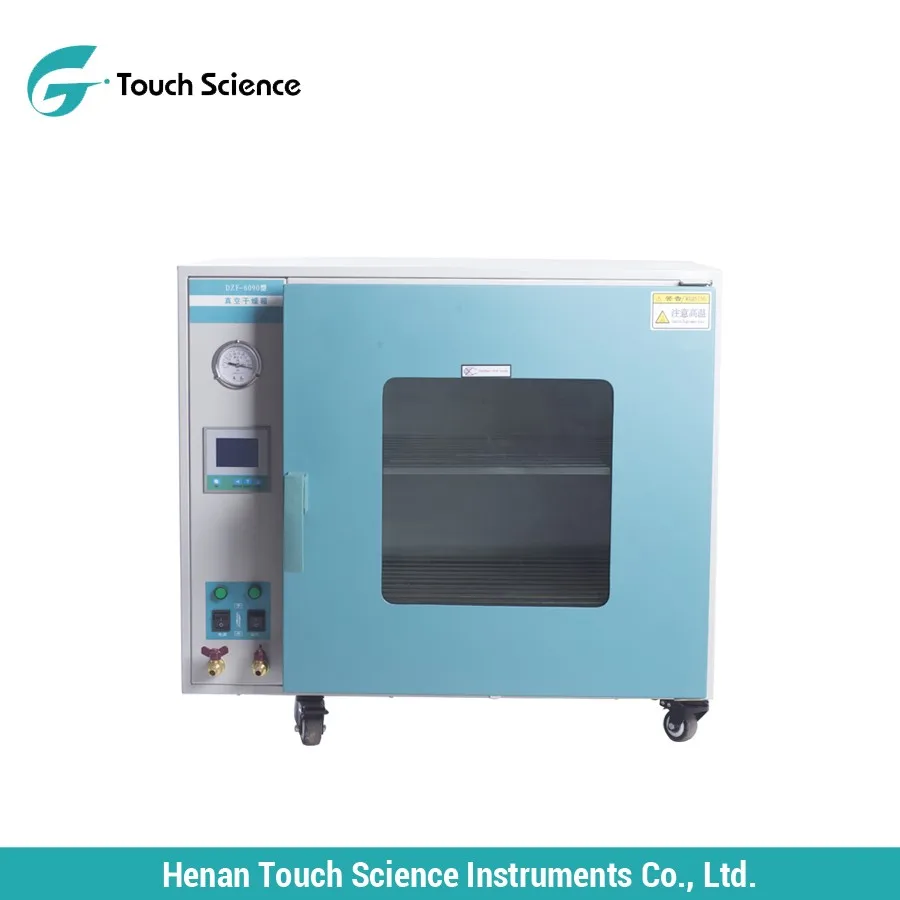

Resin Vacuum Dryer Laboratory Drying Oven

Function:
Vacuum dryer laboratory drying oven applies in drying, sterilizing and heat treatment of articles under the relatively vacuum condition, in laboratories of industrial mining enterprise, colleges and universities, scientific research institute and medicine and health units etc. especially for those drying heat-sensitive, labile, oxidizing material and decompounded to carry on fast and effective drying process.

Features of Vacuum Dryer Laboratory Drying Oven:

1. The 4 sides vacuum tube makes room temperature more uniform, avoiding organic connecting with fires burning.
2.The powder and granule like resin will not be blown or moved away by air,Compared with the normal drying method depended on air circulation
3.The vacuum environment greatly lower the liquid boiling point ,therefore it suits the heat-sensitive material.
4.Storage, heating, experiments and drying are all doing in the environment with no oxygen or filled with inert gas, so oxidation will not happen.
5. The vacuum is controlled by micro processor controller with digital display.
6.Inert gas can be filled in the chamber.

Parameters of Vacuum Dryer Laboratory Drying Oven:

Model
DZF-6010
DZF-6020
DZF-6050
DZF-6090
DZF-6210
DZF-6500
Power Supply
220V/50HZ
Shell Material
Spray-paint Anti-corrosion
Liner Material
304 Stainless Steel
Temp. Range
RT+10~200°C
Max. Vacuum Degree
0.098 Mpa
Temp. Stability
±1.0°C
Temp. Analysis
0.1°C
Working Temp.
+5~40°C
Input Power (W)
400
800
1400
2000
2400
2800
Chamber Capacity (L)
8
25
55
90
215
215
Shelves (Pcs)
1
2
3
4
Time Range
1~9999 min
Optional Configuration
Explosion-proof

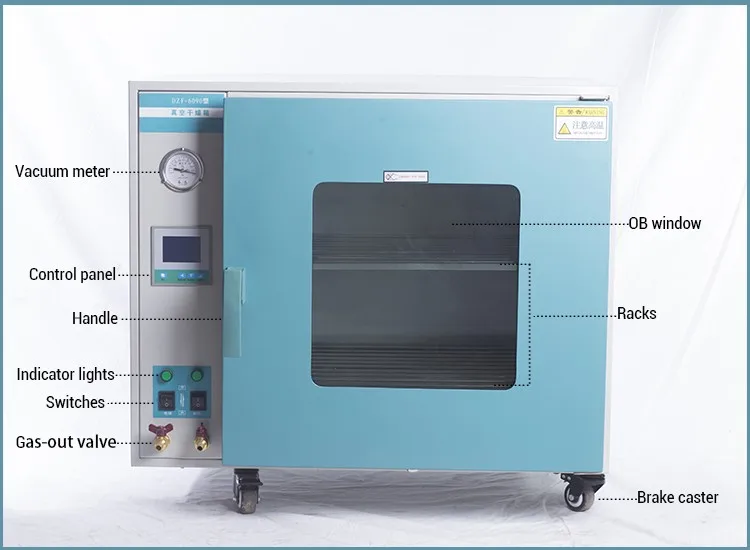

Detailed Images

Control panel

LCD display
Precise temperature control
Easy operation and observation

Stainless steel rack

304 stainless steel material
Anti-corrosion and heat resistance
Eeasy move and clean

Vacuum Gauge

Stable, Sensitive, Precise
Anti-magnetic, Anti-corrosion
Tight sealing and structure

Packing & Delivery
Our Service

1. Pre-service
24 Hours online service for your consult.
Help to choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--OEM avaliable。
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
